    CERTIFIED CHEMICAL DUTY // ISO 51990–14 pH RESISTANCE

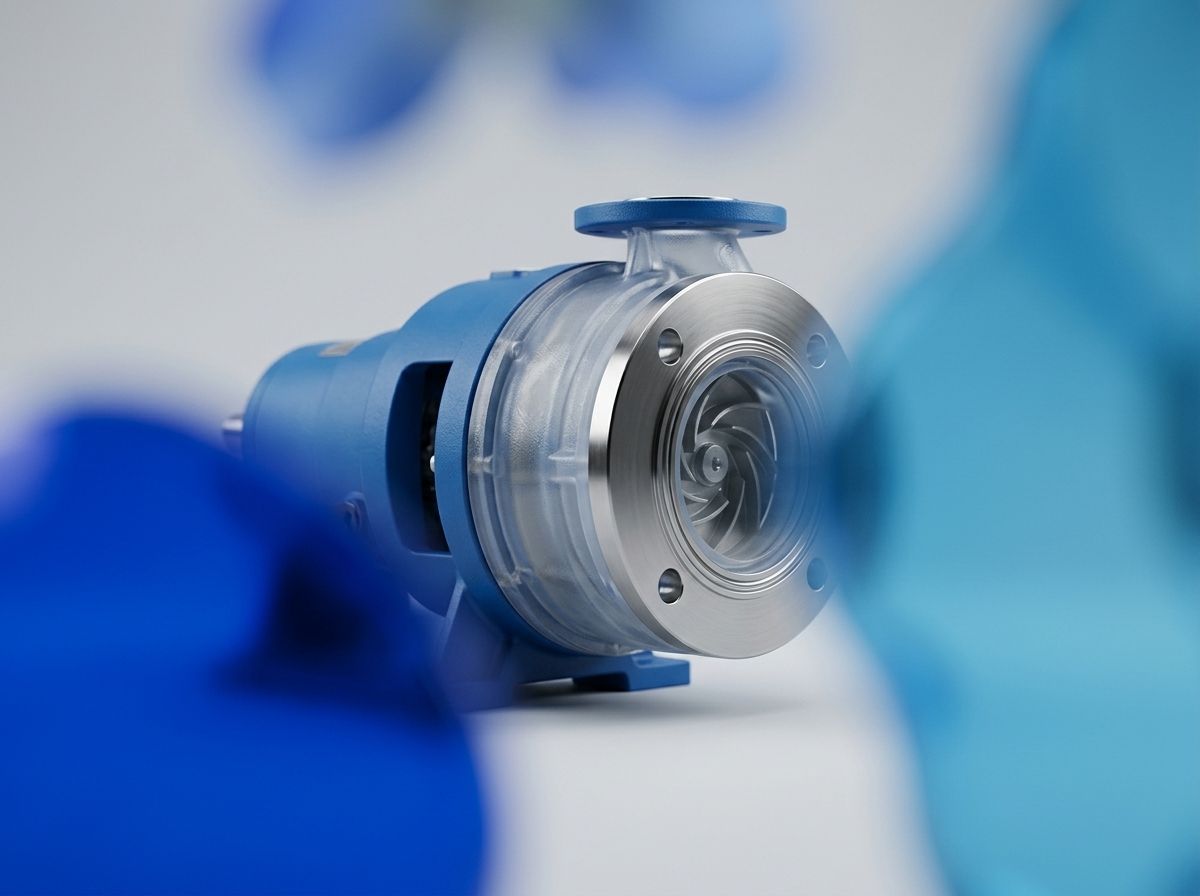

    Magnetic Drive Pumps

    Magnetic drive pump manufacturer in India — seal-less pumps for toxic, volatile, and hazardous chemicals with zero leakage and no mechanical seal maintenance.

    Hydro-Tested @ 1.5x PNZero Fugitive EmissionsVirgin Fluoropolymer Lining
    Call +91 98251 62709WhatsAppRequest Sizing & Quote
    Flow Rate
    10-300 LPM
    Head Range
    15-60 meters
    Material
    PP/PVDF/SS316
    Max Temperature
    90°C
    Magnetic Drive Pumps
    Commercial Range
    ₹1,20,000 - ₹4,00,000
    Dispatch Timeline
    Ex-Stock / 3-5 Days
    0–14
    pH Envelope
    1.5x PN
    Hydro-Tested
    < 0.01mm
    Shaft TIR
    Ahmedabad Works
    Direct OEM parts & service
    1-Click Plant Duty Sizing

    Configure Your Chemical Duty for Fast Quotation

    Technical Review < 2 Hours
    Duty-Matched MaterialsISO 5199 Factory TestingEx-Stock / Rapid Gujarat Dispatch
    Send Sizing on WhatsAppGet Technical Quote
    [METALLURGY & RELIABILITY SAFEGUARDS]

    Built for Severe Industrial Duty

    Precision components engineered in Ahmedabad to eliminate repetitive seal leaks, corrosion, and unplanned downtime.

    Virgin Fluoropolymer Liner

    Glass-filled PTFE, high-purity PFA, or PVDF wetted surfaces resisting concentrated sulfuric, hydrochloric, and nitric acids across 0–14 pH.

    0% Corrosion Risk

    Zero-Leak Drive Assembly

    Sealless synchronous Neodymium (NdFeB) magnetic coupling or heavy-duty cartridge mechanical seals configured to prevent fluid emissions.

    100% Hermetic Containment

    Silicon Carbide (SSiC) Bearings

    Diamond-hard sintered silicon carbide sleeve bearings and ceramic thrust rings engineered for extreme chemical abrasion resistance.

    Extreme Wear Resistance

    Hydro-Tested @ 1.5x PN

    Every unit undergoes ISO 1940 Grade G2.5 dynamic impeller balancing and 100% hydrostatic pressure hold before factory release.

    ISO 5199 Verified
    [CHEMICAL COMPATIBILITY]

    Severe Chemical Envelope

    Verified chemical compatibility at ambient and elevated temperatures for Magnetic Drive Pumps.

    Sulfuric Acid (H₂SO₄)98% Concentrated
    Hydrochloric Acid (HCl)37% Fuming
    Nitric Acid (HNO₃)Up to 68%
    Hydrofluoric Acid (HF)All Concentrations
    Caustic Soda (NaOH)50% Membrane Grade
    Chlorinated Solvents (DCM/EDC)100% Pure
    Phosphoric Acid (H₃PO₄)85% Technical
    Sodium Hypochlorite (NaOCl)15% Available Cl₂
    Need a custom chemical check? Send fluid concentration for verification.
    Database
    DATASHEET // MAGNETIC-DRIVE-PUMPS

    Certified Technical Datasheet

    ISO 5199
    Flow Rate
    10-300 LPM
    Head Range
    15-60 meters
    Material
    PP/PVDF/SS316
    Max Temperature
    90°C
    Inlet/Outlet Sizes
    25mm to 100mm
    Motor Type
    TEFC, IP55
    Power Range
    1 HP to 15 HP
    Download Datasheet PDFCall Engineering Desk
    [PROVEN PLANT APPLICATIONS]

    Common Process Applications

    Installed across major chemical synthesis, bulk drug API, electroplating, and effluent treatment facilities across India.

    Hazardous chemical transfer

    Fluoropolymer wetted linings ensure non-reactive transfer of aggressive media without corrosion or mechanical breakdown.

    Verified Duty Match

    Solvent recirculation

    Fluoropolymer wetted linings ensure non-reactive transfer of aggressive media without corrosion or mechanical breakdown.

    Verified Duty Match

    Electroless plating

    Fluoropolymer wetted linings ensure non-reactive transfer of aggressive media without corrosion or mechanical breakdown.

    Verified Duty Match
    [QUESTIONS & TECHNICAL GUIDANCE]

    Frequently Asked Questions

    The magnetic coupling drives the impeller without a shaft passing through the casing, eliminating the mechanical seal and its leak path. For toxic, volatile, or expensive chemicals this removes the fugitive-emissions risk entirely and cuts seal maintenance cost.

    Related Pumps, Spares & Workshop Support

    Magnetic Drive PP Pump RepairView details →PFA Lined Magnetic Drive Pump RepairView details →Magnetic Drive vs Mechanical Seal PumpsView details →Magnetic Drive Pump Dry Running: Damage & PreventionView details →

    Need this pump configured for your plant?

    Share your liquid concentration, operating temperature, flow rate, and total head. Our Ahmedabad engineering team will review hydraulic curves and submit a certified quotation.
